Sensor, Ambient Temperature: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

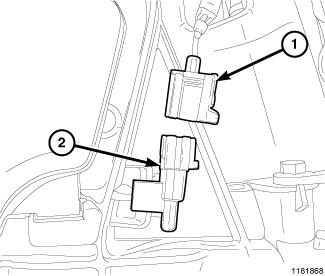

Fig 1: Ambient Temperature Sensor & Electrical Connector
GC0087702Courtesy of CHRYSLER GROUP, LLC
  1. Open the hood.
  2. Disconnect and isolate the negative battery cable.
  3. Remove the grille. Refer to GRILLE, REMOVAL .
  4. Disconnect the sensor electrical connector (1) and remove sensor (2) from vehicle.
