Anchor, Child Seat: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

NOTE:

The following procedure applies only to the rear seat upper child tether straps used on quad or crew cab vehicles. The child restraint anchors used in other vehicles and locations are integral to other components and cannot be serviced separately.

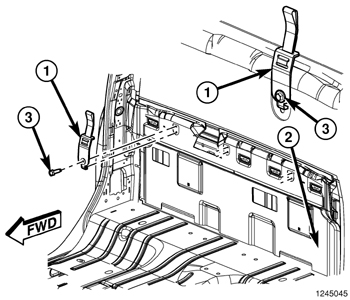

Fig 1: Locating Upper Tether Anchor Straps - Quad CAB

Courtesy of CHRYSLER GROUP, LLC

Position the child tether strap (1) onto the cab back panel (2) upper reinforcement.
Install and tighten the screw (3) that secures the child tether strap to the upper cab back panel reinforcement. Tighten the screw to 14 N.m (10 ft. lbs.).
Reinstall the rear seat into the vehicle. Refer to SEAT, REAR, INSTALLATION or SEAT, MEGA CAB REAR, INSTALLATION .
