Diagnostic Test

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR AN INTERMITTENT CONDITION
1. Turn the ignition on and open one of the front doors.
  NOTE:
  A front door must remain open whenever checking or erasing Radio DTC's.
2. Using the scan tool, record and erase the Radio DTC's.
3. Turn the Radio on.
4. Adjust the speakers to the rear and center.
5. Using the scan tool, read the active Radio DTC's.
  Does the scan tool read: B140D-REAR RIGHT AUDIO SPEAKER OUTPUT CIRCUIT LOW?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK RIGHT REAR SPEAKER
1. Make sure one of the front doors is still open.
2. Using the scan tool, erase the DTC's.
3. Turn the ignition off.
4. Disconnect the Right Rear Speaker harness connector from the Right Rear Speaker.
5. Turn the ignition on.
6. Turn the radio on.
7. Using the scan tool, read the active Radio DTC's.
  Does the scan tool read: B140D-FRONT RIGHT AUDIO SPEAKER OUTPUT CIRCUIT LOW?

  Yes
  - Go To 3.
  No
  - Replace the Right Rear Speaker in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK THE (X206) RIGHT REAR SPEAKER (+) CIRCUIT FOR A SHORT TO GROUND

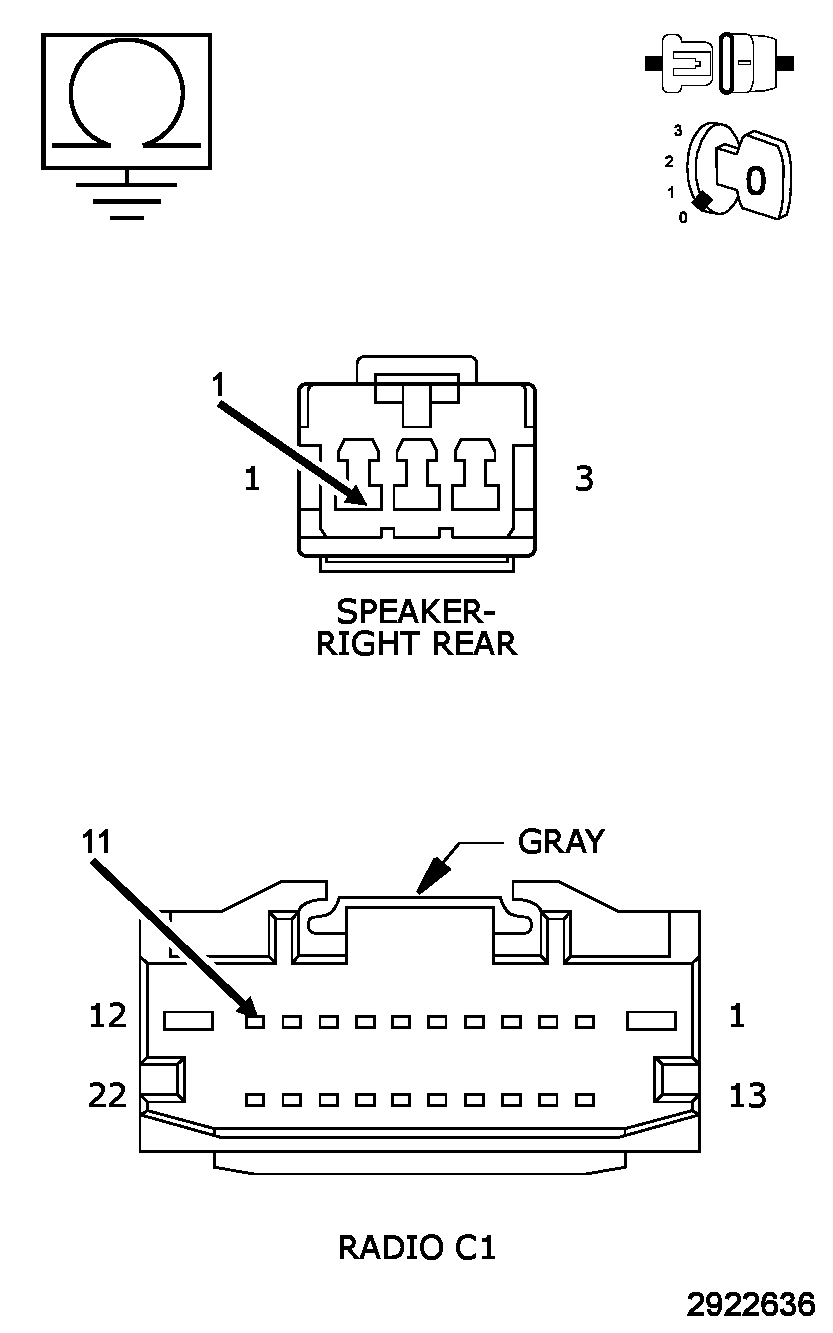

Fig 1: Checking Right Rear Speaker (+) Circuit For A Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Radio C1 harness connector.
3. Measure the resistance between ground and the (X206) Right Rear Speaker (+) circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (X206) Right Rear Speaker (+) circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 4.
CHECK THE (X296) RIGHT REAR SPEAKER (-) CIRCUIT FOR A SHORT TO GROUND

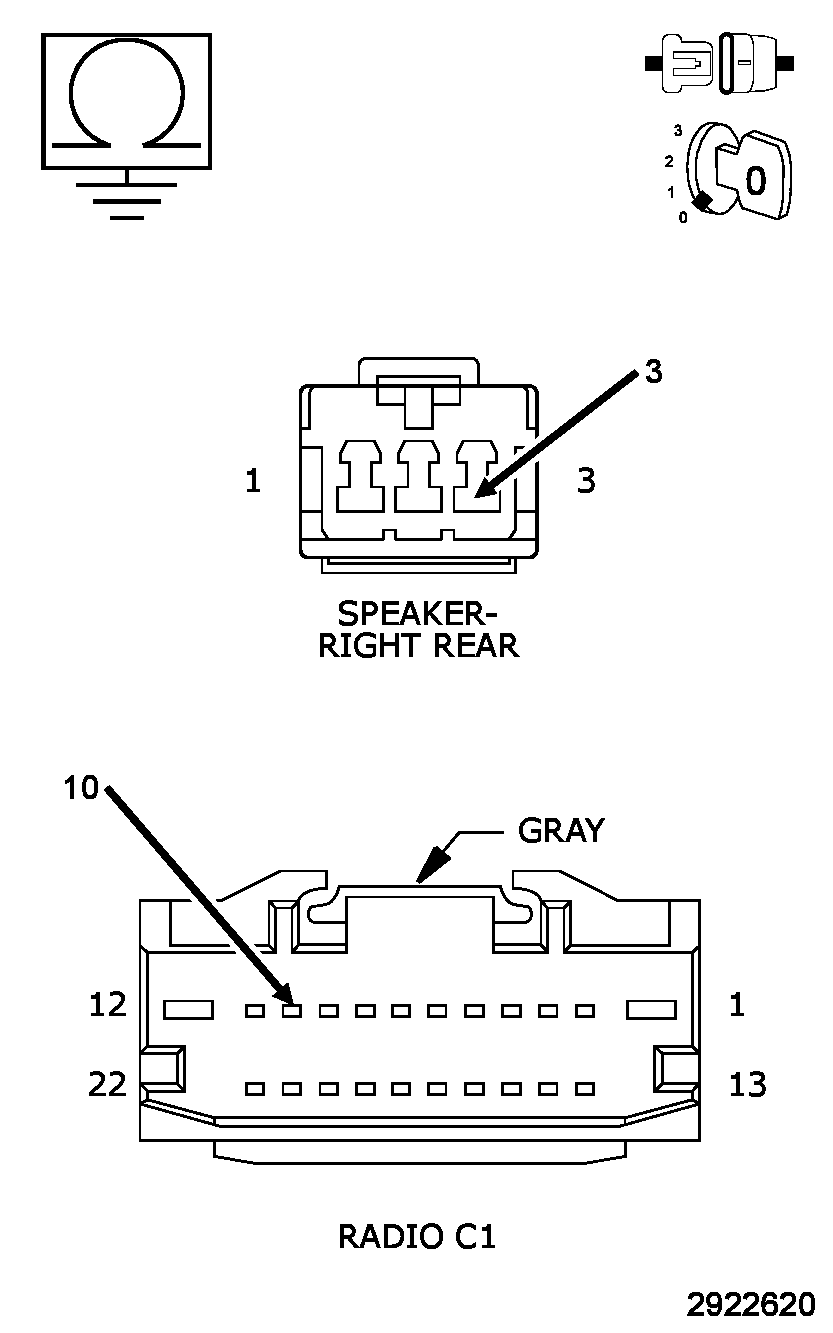

Fig 2: Checking Right Rear Speaker (-) Circuit For A Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between ground and the (X296) Right Rear Speaker (-) circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (X296) Right Rear Speaker (-) circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Replace the Radio in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
