Diagnostic Test

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR AN INTERMITTENT CONDITION
1. Turn the ignition on and open one of the front doors.
  NOTE:
  A front door must remain open whenever checking or erasing Radio DTC's.
2. Using the scan tool, record and erase the Radio DTC's.
3. Turn the Radio on.
4. Adjust the speakers to the rear and center.
5. Using the scan tool, read the active Radio DTC's.
  Does the scan tool read: B140B-REAR LEFT AUDIO SPEAKER OUTPUT CIRCUIT FOR AN OPEN?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK THE LEFT REAR SPEAKER

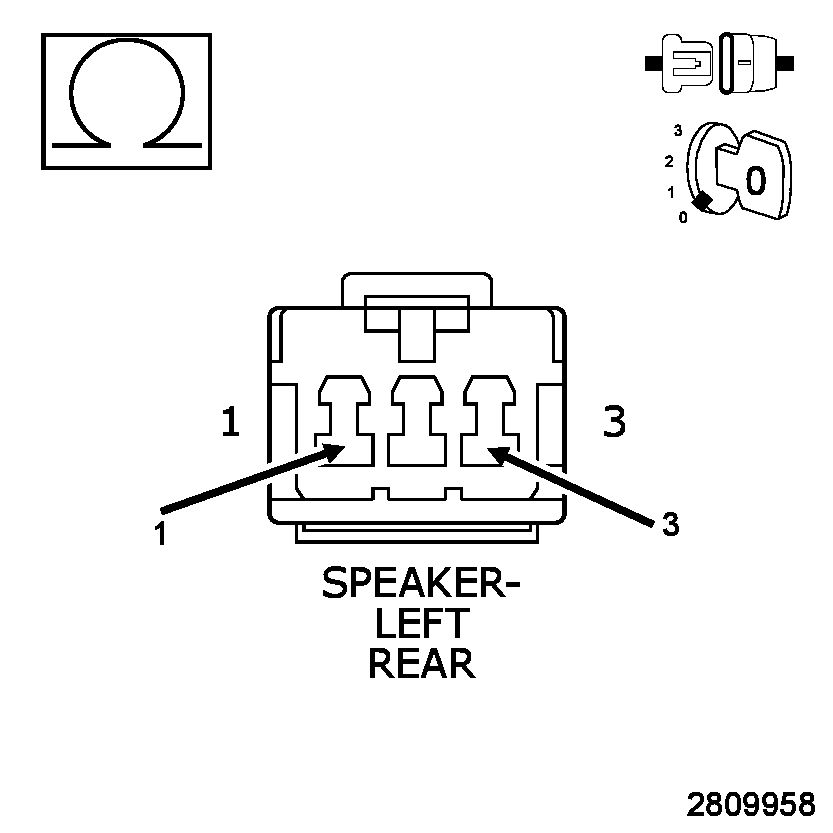

Fig 1: Checking The Left Rear Speaker
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Left Rear Speaker.
3. Measure the resistance of the speaker between the two terminals.
  NOTE:
  The graphic shows the connector for reference only. Measure between the speaker terminals.

  Is the resistance above 5.0 Ohms?

  Yes
  - Replace the Left Rear Speaker in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
CHECK THE (X205) LEFT REAR SPEAKER (+) CIRCUIT FOR AN OPEN

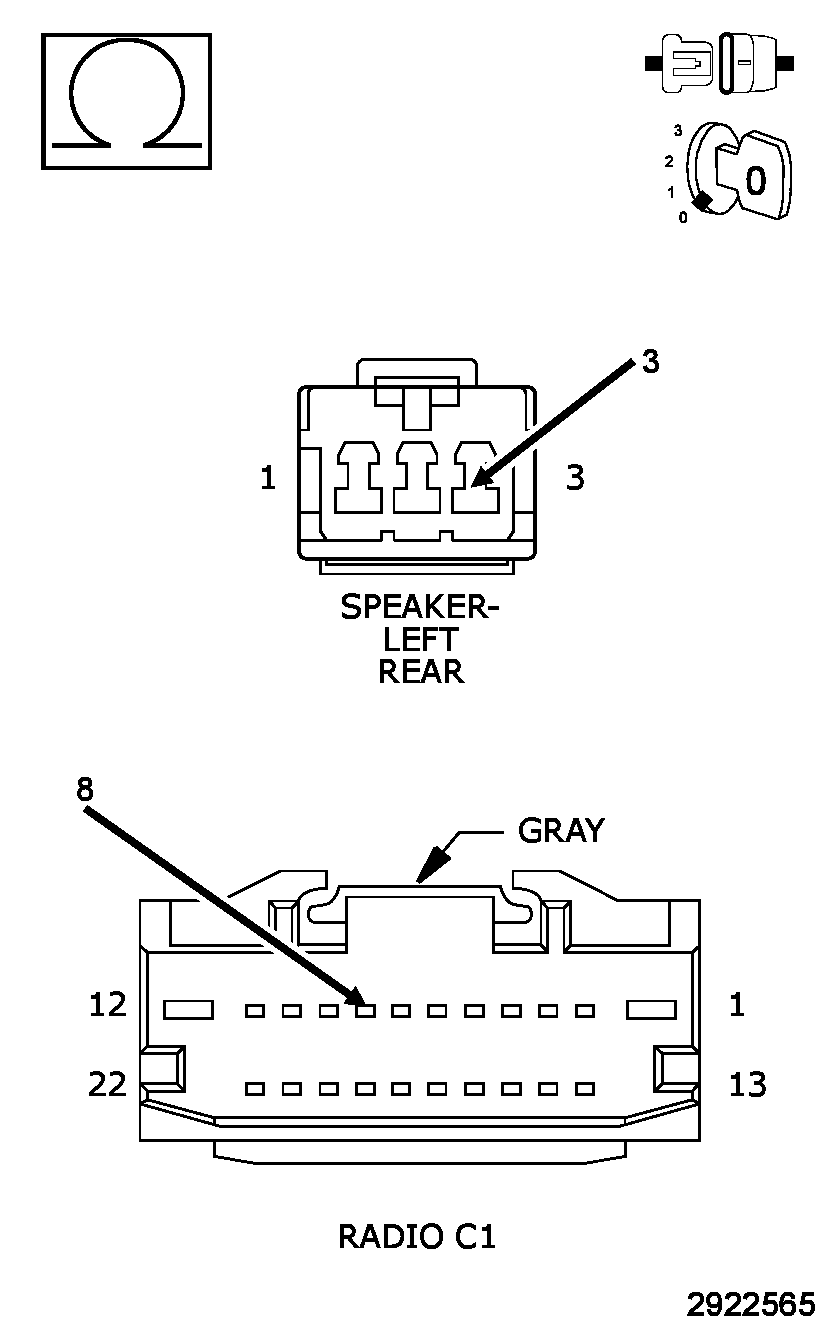

Fig 2: Checking Left Rear Speaker (+) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Disconnect the Radio C1 harness connector.
2. Measure the resistance of (X205) Left Rear Speaker (+) circuit between the Radio C1 connector, and the Left Rear Speaker harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4.
  No
  - Repair an open in the (X205) Left Rear Speaker (+) circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK THE (X295) LEFT REAR SPEAKER (-) CIRCUIT FOR AN OPEN

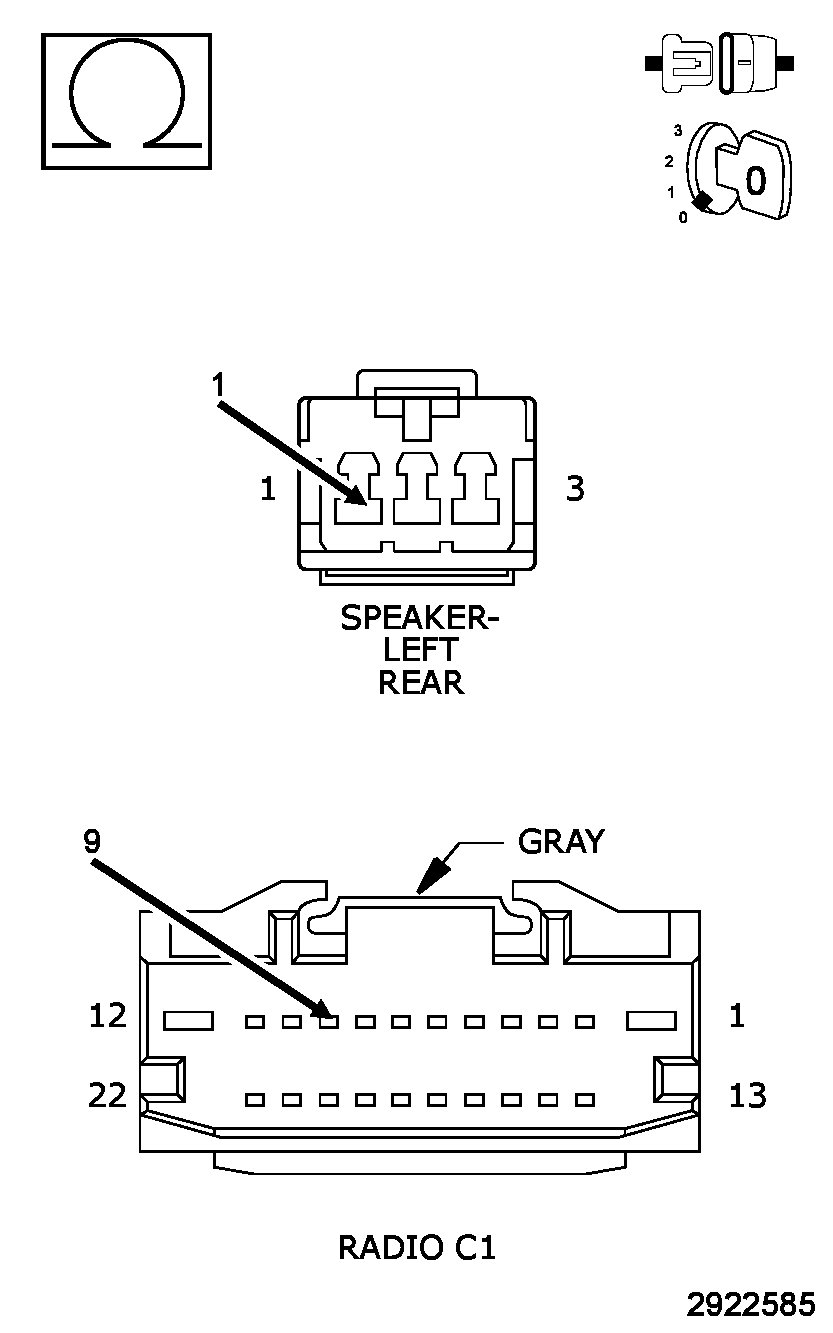

Fig 3: Checking Left Rear Speaker (-) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of (X295) Left Rear Speaker (-) circuit between the Radio C1 connector, and the Left Rear Speaker harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Radio in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Repair an open in the (X295) Left Rear Speaker (-) circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
