Engine To Heat Shield - 3.7L Engine

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

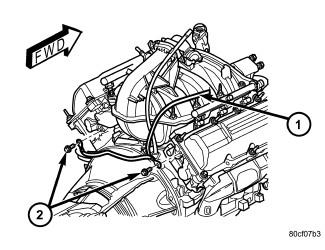

Fig 1: Engine To Heat Shield Ground Strap (Engine Side - 3.7L
GC0083444Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the attaching bolts (2) from the cylinder heads.

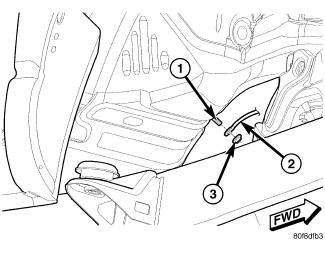

    Fig 2: Heat Shield
    GC0091831Courtesy of CHRYSLER GROUP, LLC
  3. Remove nut (3) from heat shield (1) and remove strap (2).
