Valve, Exhaust Gas RECIRCULATION (EGR), 4.7L: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

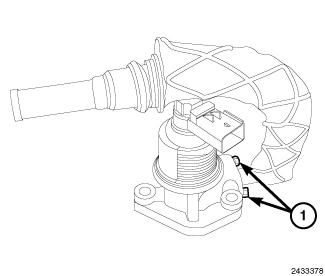

Fig 1: EGR Valve Routing Tube Retaining Bolts

Courtesy of CHRYSLER GROUP, LLC

Clean the EGR valve mounting surface of the left cylinder head.
Clean the EGR valve surface where it joins the left cylinder head.
Clean the EGR valve surface where it joins the EGR valve routing tube.
Clean the EGR valve routing tube surface where it joins the EGR valve.
Install a new O-ring gasket on the EGR vale routing tube.
Position a new gasket between the EGR valve routing tube flange and the EGR valve assembly.
Position the EGR valve routing tube to the EGR valve assembly, install retaining bolts (1) and tighten to 11 N.m (8 ft. lbs.).
Position the new EGR valve gasket on the cylinder head.

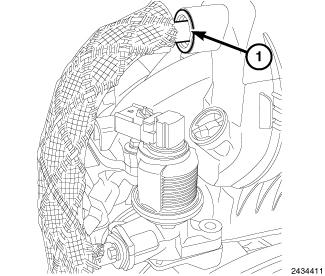

Fig 2: EGR Valve Routing Tube Flange
Courtesy of CHRYSLER GROUP, LLC
Position the EGR valve routing tube into the intake manifold until the EGR valve routing tube flange (1) is flush with the intake manifold.
Align the EGR valve to the cylinder head while holding the EGR valve gasket in place.

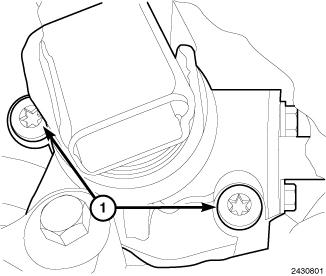

Fig 3: EGR Valve Assembly Retaining Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the EGR valve assembly retaining bolts (1) and tighten to 9 N.m (80 in. lbs.).

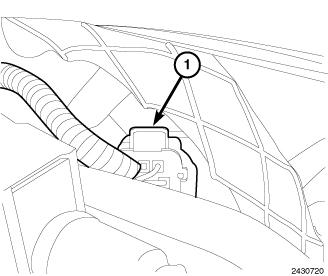

Fig 4: EGR Valve Solenoid Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the EGR valve solenoid electrical connector (1).
Connect the fuel line to the fuel rail.

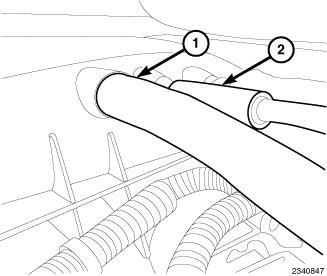

Fig 5: Power Brake Booster Vacuum Hose & Vapor Canister Purge Hose
Courtesy of CHRYSLER GROUP, LLC
Connect the power brake booster vacuum hose (1) and the vapor canister purge hose (2) at the intake manifold.
Install the throttle body resonator.
Connect the negative battery cable.
Using a diagnostic scan tool, erase any previously recorded DTC's.
