Sensor, Diesel Exhaust Fluid Level/Temperature: Removal: Removal
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect both negative battery cables.
- Remove Diesel Exhaust Fluid (DEF) tank. Refer to TANK, DIESEL EXHAUST FLUID, REMOVAL .

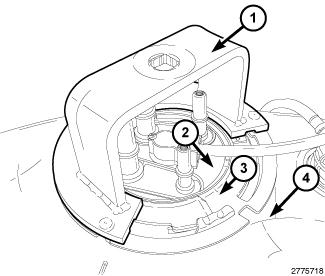

- Using the DEF Module Lock Ring Wrench (special tool #10189, Wrench, DEF Module Lock Ring) (1), remove the lock ring (3) from the DEF tank (4).
- Remove the level/temperature sensor (2) from DEF tank (4).
- Remove and discard O-ring seal.
