Manifold, Exhaust: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

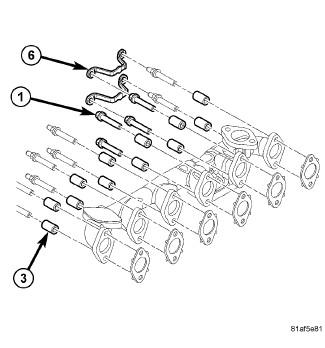

Fig 1: Exhaust Manifold Assembly
GC0108608Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the battery negative cables.
  2. Drain the coolant. Refer to STANDARD PROCEDURE .
  3. Raise vehicle on hoist.
  4. Remove the EGR cooler. Refer to COOLER, EGR, REMOVAL .
  5. Remove the air filter housing. Refer to BODY, AIR CLEANER, REMOVAL, 6.7L .
  6. Remove the air filter inlet hose from the turbo inlet.
  7. Remove the delta-P line bracket capscrew nuts and remove the delta-P line from the exhaust manifold and thermostat housing.
  8. Remove the heat shield and noise panel (if equipped) from the exhaust manifold.
  9. Remove the turbocharger. Refer to TURBOCHARGER, REMOVAL, 6.7L .
  10. Remove the two (2) rear exhaust manifold capscrew lock plates.
  11. Remove the Cab Heater tubing/bracket from the exhaust manifold stud.
  12. Remove the exhaust manifold.
