Rod, Piston And Connecting: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Piston Ring Compressor Tool
GC0108567Courtesy of CHRYSLER GROUP, LLC
1 - PISTON RING COMPRESSOR TOOL
  1. Lubricate the cylinder bores with clean engine oil.
  2. Generously lubricate the rings and piston skirts with clean engine oil.
  3. Orientate the rings on the piston. Refer to Engine/Engine Block/RING(S), Piston - Standard Procedure .
  4. Compress the rings using a piston ring compressor tool (1). If using a strap-type ring compressor, make sure the inside end of the strap does not hook on a ring gap and break the ring.
    Fig 2: Piston/Rod Assembly At BDC
    GC0108561Courtesy of CHRYSLER GROUP, LLC
  5. Bar the crankshaft so the rod journal for the piston to be installed is at BDC (Bottom Dead Center).
  6. Make sure the front of the piston is oriented properly according to the marking on the top of the piston and the connecting rod is oriented properly.
  7. Position the piston and rod assembly into the cylinder bore with the front of the piston oriented properly according to the stamping in the top of the piston. Use care when you install the piston and connecting rod so the cylinder bore is not damaged. The long side of the connecting rod must be installed on the exhaust side of the engine.
  8. Push the piston into the bore until the top of the piston is approximately 50 mm (2 in.) below the top of the block. Carefully pull the connecting rod onto the crankshaft journal.
  9. Use clean engine oil to lubricate the threads and under the heads of the connecting rod bolts.
  10. For fractured/split type connecting rods,  the long end of the rod must be installed away from the intake side of the engine.
    1. The connecting rod split/face must face toward the same side as the piston notch feature on the skirt. The split face will face toward the exhaust side of the engine if properly installed.
  11. Install the rod cap and bolts to the connecting rod. Tighten the connecting rod bolts evenly in 3 steps.
    • Tighten the bolts to 30 Nm (22 ft. lbs.).
    • Tighten the bolts to 60 Nm (44 ft. lbs.).
    • Rotate 60° clockwise.
  12. The crankshaft must rotate freely. Check for freedom of rotation as the caps are installed. If the crankshaft does not rotate freely, check the installation of the rod bearing and the bearing size.
  13. Measure the side clearance between the connecting rod and the crankshaft. DO NOT measure the clearance between the cap and crankshaft.

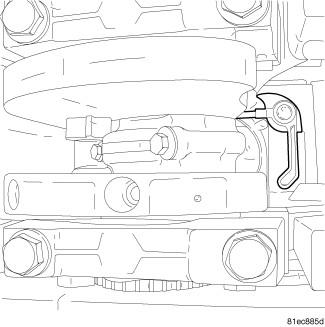

    Fig 3: J-Jet Piston Cooling Nozzle
    GC0108562Courtesy of CHRYSLER GROUP, LLC
  14. Install J-jet piston cooling nozzles.

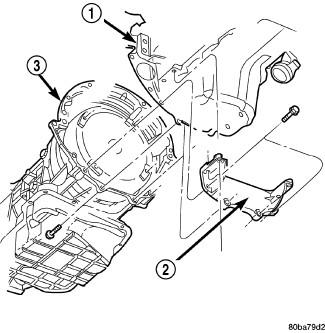

    Fig 4: Structural Cover & Bolts
    GC0108560Courtesy of CHRYSLER GROUP, LLC
    1 - ENGINE
    2 - STRUCTURAL DUST COVER
    3 - TRANSMISSION
  15. Install block stiffener. Tighten to 43 Nm (32 ft. lbs.).
    Fig 5: Oil Pickup Tube
    GC0108407Courtesy of CHRYSLER GROUP, LLC
  16. Install the suction tube and oil pan. Refer to PAN, OIL, INSTALLATION, 6.7L .
    Fig 6: Cylinder Head Assembly & Gasket
    GC0108488Courtesy of CHRYSLER GROUP, LLC
  17. Install the cylinder head onto the engine. Refer to CYLINDER HEAD, INSTALLATION, 6.7L .
  18. Install a new filter and fill the crankcase with new engine oil.Prefill the filter with clean oil.
  19. Connect both negative battery cables.
  20. Start engine and check for leaks.
