Pump, Engine Oil: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

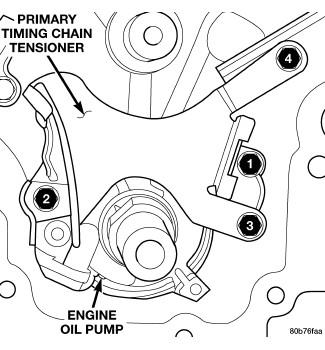

Fig 1: Oil Pump & Primary Timing Chain Tensioner Tightening Sequence
GC0082881Courtesy of CHRYSLER GROUP, LLC
  1. Position the oil pump onto the crankshaft and install one oil pump retaining bolt.
  2. Position the primary timing chain tensioner and install three retaining bolts.
  3. Tighten the oil pump and primary timing chain tensioner retaining bolts to 28 N.m (250 in. lbs.) in the sequence shown in illustration.
  4. Install the secondary timing chain tensioners and timing chains. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION, 4.7L .

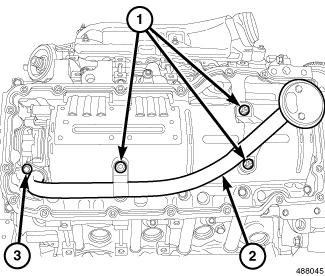

    Fig 2: Oil Pickup Tube & Fasteners
    GC0087895Courtesy of CHRYSLER GROUP, LLC
  5. Install the timing chain cover. Refer to COVER(S), ENGINE TIMING, INSTALLATION, 4.7L .
  6. Install the pick-up tube and oil pan. Refer to PAN, OIL, INSTALLATION, 4.7L .
