Body, Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

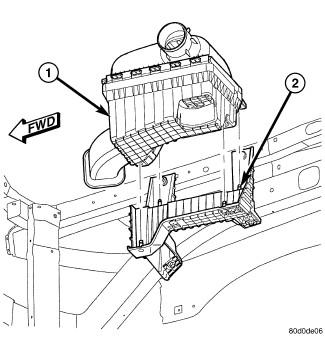

Fig 1: Air Cleaner Housing Assembly
GC0083519Courtesy of CHRYSLER GROUP, LLC
  1. Position housing assembly (1) into 4 locating pins (2).

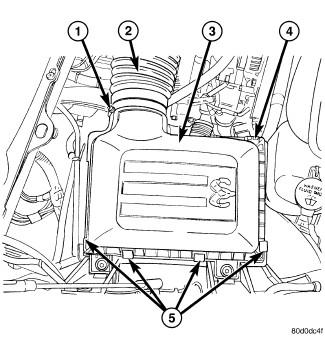

    Fig 2: Air Cleaner Housing Cover, Air Duct & Fasteners
    GC0083520Courtesy of CHRYSLER GROUP, LLC
  2. Connect air duct (2) at air cleaner cover (3) and tighten clamp (1).
