Engine Block: Crankshaft: Description: Description

WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

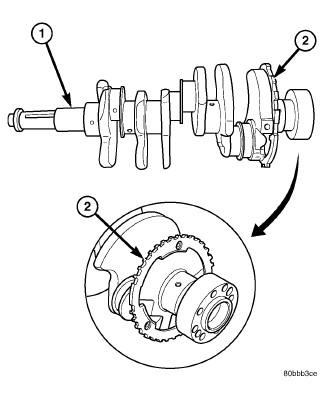

Fig 1: Crankshaft & Target Ring

Courtesy of CHRYSLER GROUP, LLC

1 - CRANKSHAFT

2 - CRANKSHAFT POSITION SENSOR TARGET RING

The crankshaft (1) is constructed of nodular cast iron. Refer to Fig 1. The crankshaft is a three throw split pin design with six counterweights for balancing purposes. The crankshaft is supported by four select fit main bearings with the No. 2 serving as the thrust washer location. The main journals of the crankshaft are cross drilled to improve rod bearing lubrication. The No. 6 counterweight has provisions for crankshaft position sensor target wheel (2) mounting. The select fit main bearing markings are located on the rear side of the target wheel. The crankshaft oil seals are one piece design. The front oil seal is retained in the timing chain cover, and the rear seal is pressed in to a bore formed by the cylinder block and the bedplate assembly.
