CONNECTOR, Trailer Tow: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

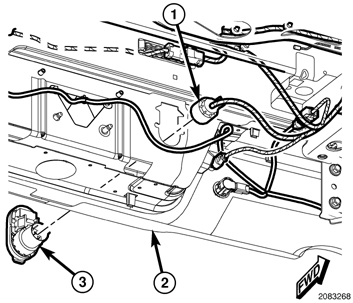

- Reach behind the center of the rear bumper (2) to access and disconnect the connector (1) of the body wire harness from the combined 4-way and 7-way trailer tow connector (3).
- Reach behind the center of the rear bumper to compress each of the two spring clips (1) on the trailer tow connector housing (3) far enough to push the housing out through the face of the bumper.
- Remove the trailer tow connector from the face of the rear bumper.
