Cluster Assembly

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

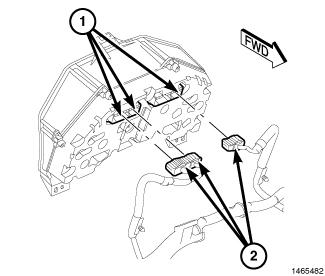

Fig 1: Instrument Panel Wire Harness Connectors

Courtesy of CHRYSLER GROUP, LLC

Position the instrument cluster close enough to the instrument panel to reconnect the three instrument panel wire harness connectors (2) to the connector receptacles (1) on the back of the cluster housing.

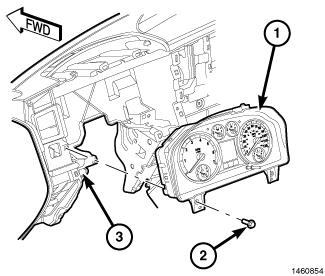

Fig 2: Instrument Cluster, Panel & Screws
Courtesy of CHRYSLER GROUP, LLC
Position the instrument cluster (1) into the instrument panel (3).
Install and tighten the two screws (2) that secure the instrument cluster to the instrument panel structural support. Tighten the screws to 4 N.m (31 in. lbs.).
Reinstall the cluster bezel onto the instrument panel. Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
Reconnect the battery negative cable.
NOTE:
Certain indicators in this instrument cluster are automatically configured. This feature allows those indicators to be activated or deactivated for compatibility with certain optional equipment. If a problem is noted that involves improper illumination of the cruise indicator, the electronic throttle control indicator, the fog lamp indicator, any of the four-wheel drive indicators, the overdrive OFF indicator, the tow/haul indicator, the transmission overtemp indicator, the security indicator or the gear selector indicator, disconnect and isolate the battery negative cable. After about five minutes, reconnect the battery negative cable and turn the ignition switch to the ON position. The instrument cluster should automatically relearn the equipment in the vehicle and properly configure the configurable indicators accordingly.
