Duct, Floor Distribution, Rear: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

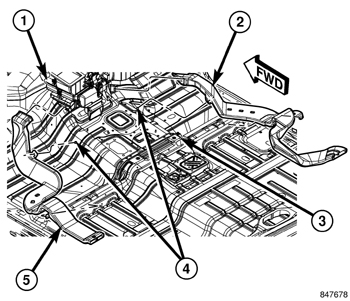

Fig 1: Rear Floor Ducts
GC0089534Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front seats. Refer to SEAT, FRONT, REMOVAL and SEAT, FRONT CENTER, REMOVAL .
  2. Roll back the front carpet from under the instrument panel toward the rear of the vehicle. Refer to CARPET, FLOOR, REMOVAL .
  3. Disengage the rear floor ducts (2 and 5) from the floor support bracket (3) and from the studs (4) located on the floor panel.
  4. Disconnect the rear floor ducts from the HVAC housing (1) and remove the ducts.
