Bearing, Differential Side: Removal: Removal
WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- Remove differential case from axle housing.

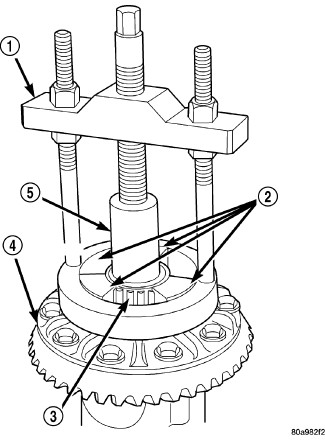

- Remove differential bearings (3) from the case with (special tool #C-293-PA, Puller, Press) (1) and (special tool #C-293-47, Block Set, Puller) (2) and (special tool #C-293-3, Adapter, Bearing/Gear) (5).
