Bearing, Axle Shaft: Removal: Removal
WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- Remove axle shaft. Refer to SHAFT, AXLE, REMOVAL .
- Remove axle shaft seal from axle tube with a small pry bar.NOTE:
The seal and bearing can be removed at the same time with the bearing removal tool.

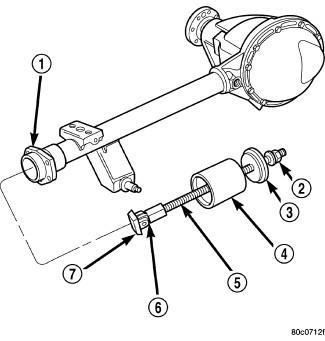

- Remove axle shaft bearing with (special tool #6310, Remover, Bearing/Seal) (2) (3) (4) (5) and (special tool #6310-9, Head) (7).
