2500 - 3500 Heavy Duty

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

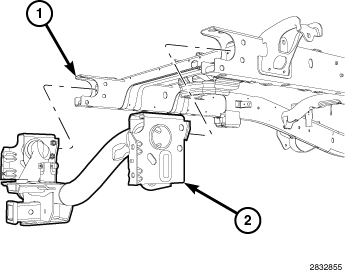

Fig 1: Hitch & Frame

Courtesy of CHRYSLER GROUP, LLC

Install the hitch (2) onto the frame (1).

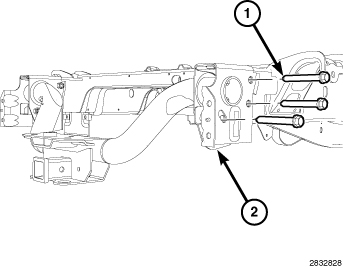

Fig 2: Hitch & Bolts (HD)
Courtesy of CHRYSLER GROUP, LLC
Install the six bolts (1).
Tighten the bolts (1) to 169 Nm (125 lbf-ft).
Install the rear bumper. Refer to BUMPER, REAR, INSTALLATION .
