Bearing, Differential Side: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Heating Bearing

Courtesy of CHRYSLER GROUP, LLC

WARNING:

Use tongs or welding gloves when handling heated components. Failure to follow these instructions will result in personal injury.

CAUTION:

Bearings (1) are installed using a Bearing Heater (2). Use only a bearing heater/hot plate and follow manufacture's instructions. Heat components to 100 - 149 Celsius (212° Min. - 300° Max Fahrenheit). Never use an open flame to heat components. Never leave components on heater for an extended amount of time. If component is discolored after heating, the component has been overheated and must not be used. Failure to follow these instructions will result in component damage.

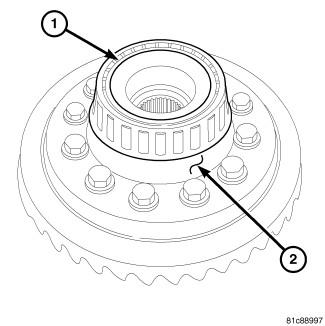

Fig 2: Ring Gear Side Differential Bearing

Courtesy of CHRYSLER GROUP, LLC

Heat ring gear side differential bearing to 100 - 149 Celsius (212° Min. - 300° Max Fahrenheit). Install bearing (1) on differential (2) with tongs or welding gloves.

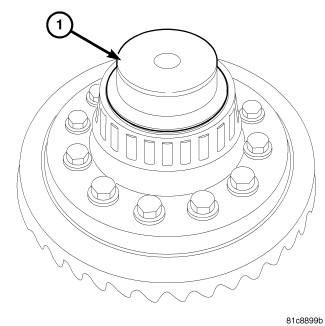

Fig 3: Bearing Installer 8151
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Ring gear side differential bearing can also be install with Installer (special tool #8151, Installer, Bearing Cup) (1) and a press.

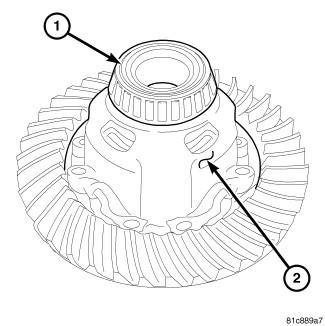

Fig 4: Pinion Gear Side Differential Bearing
Courtesy of CHRYSLER GROUP, LLC
Heat pinion gear side differential bearing to 100 - 149 Celsius (212° Min. - 300° Max Fahrenheit). Install bearing (1) on differential (2) with tongs or welding gloves.
