Gear Tooth Contact Pattern

Fig 1: Gear Tooth Contact Pattern

Courtesy of CHRYSLER GROUP, LLC

The gear and pinion gear tooth contact patterns will show if the ring gear backlash has been adjusted correctly.

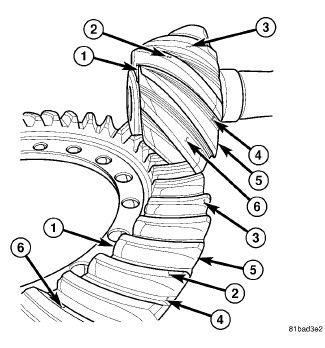

Ring and pinion gear tooth description:

• Toe - (1)
• Land - (2)
• Drive Side - (3)
• Root - (4)
• Heel - (5)
• Coast Side - (6)

Paint six ring gear teeth 180 degrees apart with marking compound. Rotate the pinion 4 full revolutions in each directions to obtain a contact pattern.

Fig 2: Identifying Correct Gear Tooth Pattern

Courtesy of CHRYSLER GROUP, LLC

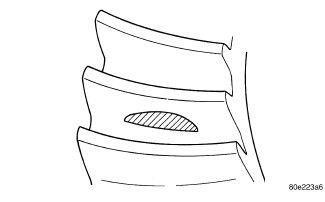

Gear contact pattern correct. Backlash and pinion depth is correct.

Fig 3: Identifying Incorrect Backlash (1 Of 4)

Courtesy of CHRYSLER GROUP, LLC

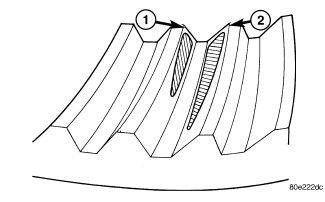

Ring gear too far away from pinion gear, coast side toe (1) and drive side heel (2). Decrease backlash, by moving the ring closer to the pinion gear.

Fig 4: Identifying Incorrect Backlash (2 Of 4)

Courtesy of CHRYSLER GROUP, LLC

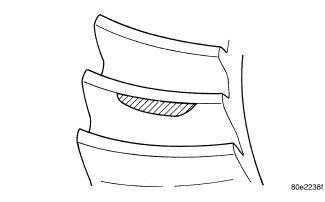

Ring gear too close to pinion gear, drive side toe (1) and coast side heel (2). Increase backlash, by moving the ring away from the pinion gear.

Fig 5: Identifying Incorrect Backlash (3 Of 4)

Courtesy of CHRYSLER GROUP, LLC

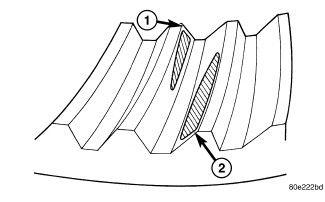

Ring gear too far away from pinion gear, drive side heel (1) and coast side heel (2). Decrease backlash, by moving the ring closer to the pinion gear.

Fig 6: Identifying Incorrect Backlash (4 Of 4)

Courtesy of CHRYSLER GROUP, LLC

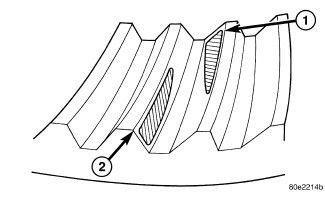

Ring gear too close to pinion gear, drive side toe (1) and coast side toe (2). Increase backlash, by moving the ring away from the pinion gear.

Fig 7: Low Pinion Height

Courtesy of CHRYSLER GROUP, LLC

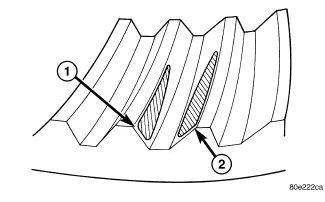

Pinion gear is set too low. Increase pinion gear height, by increasing the pinion depth shim thickness.

Fig 8: High Pinion Height

Courtesy of CHRYSLER GROUP, LLC

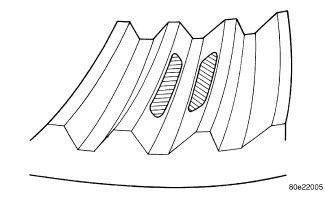

Pinion gear is set too high. Decrease pinion depth, by decreasing the pinion depth shim thickness.
