U-Joint, Single CARDAN: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

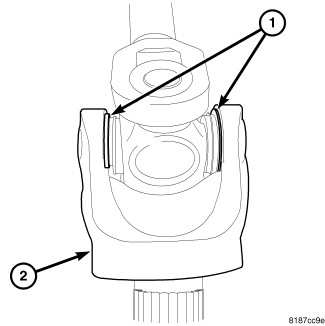

Fig 1: Stub Shaft Snap Rings

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Saturate bearing caps with penetrating oil prior to removal.

Remove axle shaft.
Remove bearing cap snap rings (1) from stub shaft yoke (2) bearing caps.

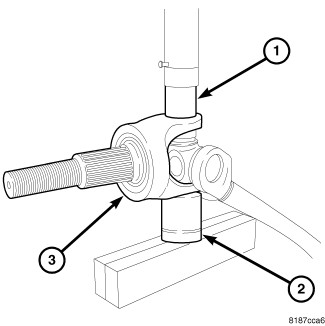

Fig 2: Press Stub Shaft 1st Cup
Courtesy of CHRYSLER GROUP, LLC
Position receiver/socket (2) and driver/socket (1) on stub shaft yoke (3) in press. Press bearing cup into receiver/socket (2).

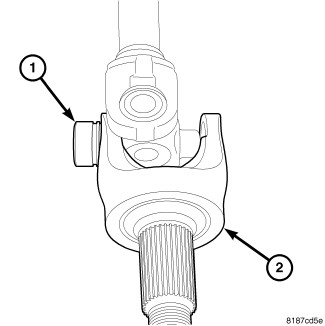

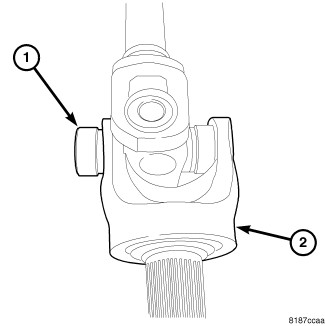

Fig 3: Stub Shaft 1st Cup
Courtesy of CHRYSLER GROUP, LLC
Remove bearing cap (1) from stub shaft yoke (2).

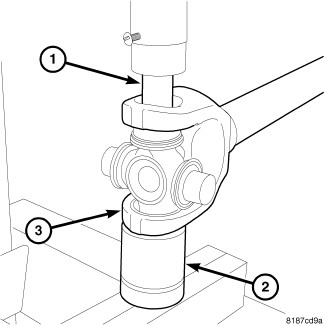

Fig 4: Press Stub Shaft 2nd Cup
Courtesy of CHRYSLER GROUP, LLC
Position receiver/socket (2) under stub shaft yoke (3) remaining bearing cup and driver/socket (1) on U-joint cross in press. Press bearing cup into receiver/socket (2)

Fig 5: Stub Shaft 2nd Cup
Courtesy of CHRYSLER GROUP, LLC
Remove bearing cap (1) from stub shaft yoke (2). Then remove stub shaft from U-joint cross.

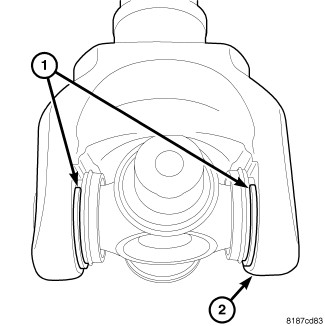

Fig 6: Shaft Snap Rings
Courtesy of CHRYSLER GROUP, LLC
Remove snap rings (1) from shaft yoke (2) bearing caps.

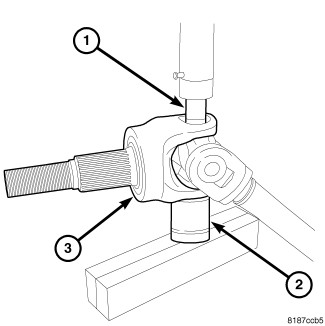

Fig 7: Press Shaft 1st Cup
Courtesy of CHRYSLER GROUP, LLC
Position receiver/socket (2) and driver/socket (1) on shaft yoke (3) in press. Press bearing cup into receiver/socket (2).

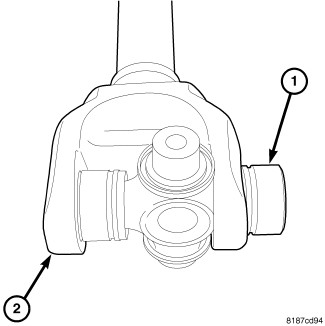

Fig 8: Shaft 1st Cup
Courtesy of CHRYSLER GROUP, LLC
Remove bearing cap (1) from shaft yoke (2).

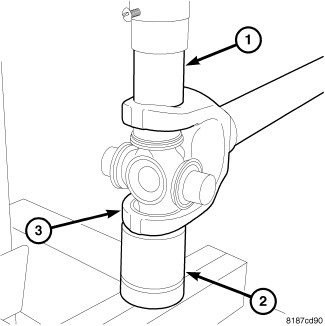

Fig 9: Press Shaft 2nd Cup
Courtesy of CHRYSLER GROUP, LLC
Position receiver/socket (2) under shaft yoke (3) remaining bearing cup and driver/socket (1) on U-joint cross in press. Press bearing cup into receiver/socket (2)

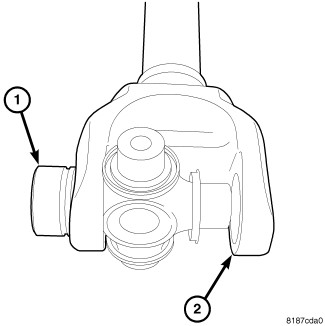

Fig 10: Shaft 2nd Cup
Courtesy of CHRYSLER GROUP, LLC
Remove bearing cap (1) from shaft yoke (2). Then remove U-joint cross from shaft yoke.
