Case Assembly, Differential, Electric Locker: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Magnetic Target Sensor & Wire Tie Strap
GC0107630Courtesy of CHRYSLER GROUP, LLC
  1. Remove differential housing cover and drain lubricant from the housing.
  2. Remove hub bearings and axle shafts.
  3. Cut sensor wire tie strap (4) from adjuster lock.
  4. Remove sensor target magnet (1) from bearing cap.
    Fig 2: Adjuster Locks & Bolts
    GC0107593Courtesy of CHRYSLER GROUP, LLC
  5. Remove adjuster lock bolts (3) and adjuster locks (2).
    Fig 3: Electric Locker Connector & Retainer
    GC0107631Courtesy of CHRYSLER GROUP, LLC
  6. Remove electric locker connector (1) retainer (2) bolt from differential housing.

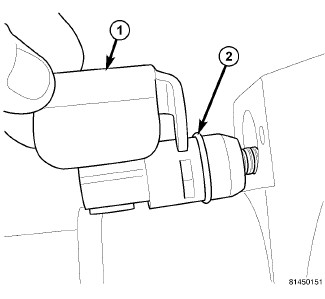

    Fig 4: Electric Locker Connector Retainer & O-Ring
    GC0107632Courtesy of CHRYSLER GROUP, LLC
  7. Remove retainer (1) and connector (2) from differential housing.
  8. Remove retainer (1) from connector (2) and remove O-ring (3) from connector.
  9. Mark bearing caps left and right for installation reference.
  10. Loosen bearing cap bolts and loosen adjusters with a hammer and punch.
  11. Remove bearing cap bolts and bearing caps.
  12. Slid electric locker connector through differential housing.
  13. Remove differential case and bearing cups from the housing.
  14. Tag bearing cups left and right for installation reference.
