Case Assembly, Differential, Electric Locker: Disassembly: Disassembly

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

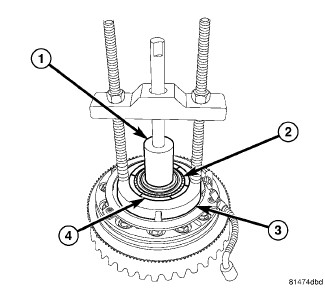

Fig 1: Removing Differential Case Bearings
GC0107619Courtesy of CHRYSLER GROUP, LLC
NOTE:

Internal differential components are serviced with the case.

  1. Bend anti-rotation tabs outward.
  2. Install Plug (special tool #9611, Plug, Differential End) (1) into coil side of the case.
  3. Remove differential case bearing (2) with Puller (special tool #C-293-PA, Puller, Press) (3) and Adapters (special tool #9613, Adapters, Puller) (4).

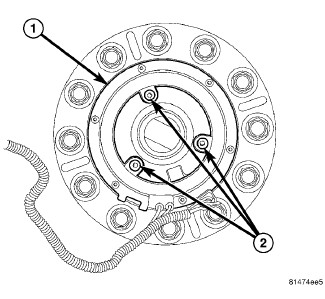

    Fig 2: Coil & Mounting Bolts
    GC0107633Courtesy of CHRYSLER GROUP, LLC
  4. Remove coil (1) mounting bolts (2).
  5. Remove coil (1) with harness.
