Seat Back, Rear: Disassembly: Disassembly: Notes

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Headrest Release Tabs
GC0092622Courtesy of CHRYSLER GROUP, LLC
  1. Remove the seat back. Refer to SEAT BACK, REAR, REMOVAL .
  2. Press master and slave buttons on head restraint guides simultaneously and remove the headrests.
    Fig 2: J-Straps
    GC0089117Courtesy of CHRYSLER GROUP, LLC
  3. Separate the J-straps (2).
    Fig 3: J-Straps & Hog Rings
    GC0089118Courtesy of CHRYSLER GROUP, LLC
  4. Separate the J-strap (1).
  5. Remove the two rear hog rings (2).
    Fig 4: Hooks, J-Straps & Hog Rings
    GC0089119Courtesy of CHRYSLER GROUP, LLC
  6. Remove the two bolts (3).
  7. Remove the two nuts (4).
  8. Pull the bottom of the armrest out and away from the seat back.
  9. Release the two top hooks (2) and remove the armrest.
  10. Separate the remaining J-straps (1 and 5).

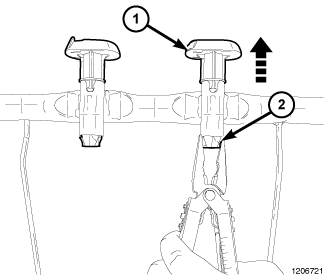

    Fig 5: Headrest Sleeves
    GC0089120Courtesy of CHRYSLER GROUP, LLC
  11. Using pliers or equivalent, squeeze the locking tabs and remove the headrest sleeves.
    Fig 6: Seat Back Hog Rings
    GC0084645Courtesy of CHRYSLER GROUP, LLC
  12. Remove the foam and cover assembly.
  13. Remove the hog rings (2) attaching the cover (3) to the foam (1).
