Striker, Hood: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

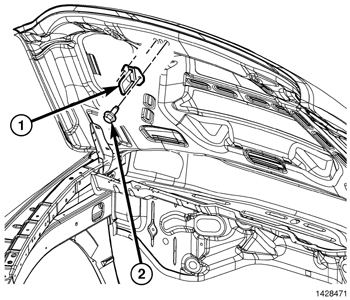

Fig 1: Hood Striker
GC0089008Courtesy of CHRYSLER GROUP, LLC
  1. Remove the two bolts (2) that fasten the striker to the hood and remove the striker (1).
