Winch, Spare Tire Carrier: Installation: Installation
WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

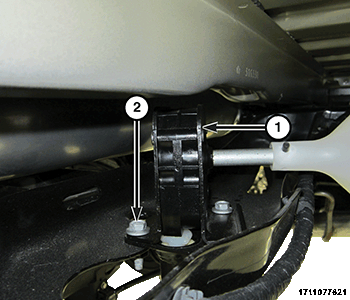

- Position the winch (1) on the crossmember. Install the bolts (2) and tighten to the proper specification. Refer to SPECIFICATIONS .
- Remove the supports and lower the vehicle.NOTE:
"Do NOT use impact tools on the Spare Tire Winch assembly to raise or lower the Spare Tire".
- Install the spare tire back into position.
