Inner Tie Rod End

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Inner Tie Rod, Rack And Pinion

Courtesy of CHRYSLER GROUP, LLC

Thread the inner tie rod (1) to the rack and pinion (2).

Fig 2: EPS Steering Rack Holder
Courtesy of CHRYSLER GROUP, LLC
Install (special tool #10417, Holder, EPS Steering Rack) (1) onto the EPS Steering Rack on the non-screw side (Driver's Side) to prevent damage to the internal working of the EPS unit during tightening the inner tie rod end.

Fig 3: Inner Tie Rod Socket
Courtesy of CHRYSLER GROUP, LLC
Install (special tool #10087-9, Socket, Inner Tie Rod) (1) onto the Inner Tie Rod.

Fig 4: Inner Tie Rod Adapter Wrench
Courtesy of CHRYSLER GROUP, LLC
Install (special tool #10087-2A, Adapter Wrench, Inner Tie Rod) (1) onto the Inner Tie Rod End and tighten to the proper SPECIFICATIONS .

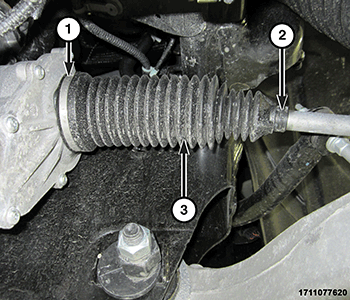

Fig 5: Clamps & Inner Tie Rod Boot
Courtesy of CHRYSLER GROUP, LLC
Install a new inner tie rod end boot (3) and clamp (1, 2) to the tie rod and rack.
Install the jam nut onto the inner tie rod end.
Install the outer tie rod. Refer to END, TIE ROD, INSTALLATION .
