Pump, Electric Vacuum: Description: Description
WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

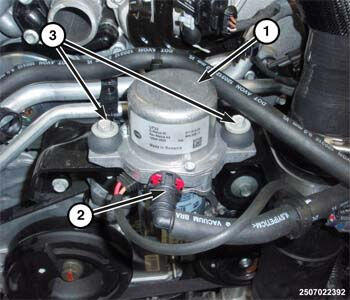

On the 3.0L engine and the 3.6L engine there is an electric vacuum pump (1) located on the left front of the engine. The vacuum pump (1) has one electrical connector. The vacuum pump (1) mounts to the bracket with two rubber insulated studs to reduce vibration, and the bracket mounts to the timing cover with two bolts and a nut. The vacuum hose has a quick-connect type end (2) with a locking tab.
