Pump, Water: Removal: 3.0L

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
    Fig 1: Removing/Installing Engine Cover
    GC0158138Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine cover (1).
  3. Drain the coolant into a clean container. Refer to STANDARD PROCEDURE .
  4. Remove the pressurized coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, REMOVAL .
  5. Remove the electric vacuum pump. Refer to PUMP, ELECTRIC VACUUM, REMOVAL .
  6. Remove the A/C suction line that is routed in front of water pump to the A/C compressor. Refer to LINE, A/C SUCTION, REMOVAL .
  7. Remove the A/C discharge line that is routed in front of water pump to the A/C compressor. Refer to LINE, A/C DISCHARGE, REMOVAL .
  8. Remove the coolant temperature sensor. Refer to SENSOR, COOLANT TEMPERATURE, REMOVAL .
  9. Remove the thermostat housing assembly. Refer to THERMOSTAT, REMOVAL .

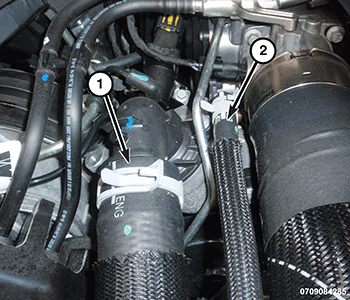

    Fig 2: Coolant Recovery Bottle Purge Hose & Lower Radiator Hose At Water Pump
    GC0173439Courtesy of CHRYSLER GROUP, LLC
  10. Remove the coolant recovery bottle purge hose (2).
  11. Remove the lower radiator hose at water pump (1) and position aside.
    Fig 3: Belt Tensioner & Bolts
    GC0158176Courtesy of CHRYSLER GROUP, LLC
  12. Remove the belt tensioner assembly. Refer to TENSIONER, BELT, REMOVAL .
    Fig 4: Serpentine Belt Tensioner Bracket & Bolts
    GC0146730Courtesy of CHRYSLER GROUP, LLC
  13. Remove the bolts (2, 3) and the belt tensioner mounting bracket (1).
    Fig 5: Fuel Supply Line
    GC0146987Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    The fuel lines are a one time torque. If the fuel lines are removed. They would require replacing.

  14. Remove the fuel supply line (2). Refer to TUBE(S), FUEL, REMOVAL .
    Fig 6: Coolant Tube & Bolts
    GC0158155Courtesy of CHRYSLER GROUP, LLC
  15. Remove the bolts (1) and the coolant tube (2).
    Fig 7: Water Pump Assembly, Coolant Inlet Tube, O-Ring & Bolts
    GC0157462Courtesy of CHRYSLER GROUP, LLC
  16. Remove the bolts (1) and water pump assembly (2).
  17. Remove the bolts (5) and the coolant inlet tube (5).
  18. Remove and discard the O-ring seal (3) from the coolant inlet tube (5).
    Fig 8: Engine Coolant Tube & O-Ring
    GC0157463Courtesy of CHRYSLER GROUP, LLC
  19. Remove and discard O-ring seal (1) from the engine coolant tube (2).
