Sensor, Exhaust Pressure: Removal: Removal

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the engine cover (1).
Remove the air cleaner body and air tube. Refer to BODY, AIR CLEANER, REMOVAL - 3.0L, BODY, AIR CLEANER, REMOVAL - 3.6L or BODY, AIR CLEANER, REMOVAL - 5.7L.

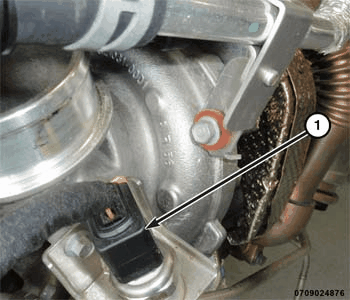

Fig 2: Exhaust Pressure Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the exhaust pressure sensor wire harness connector (1).

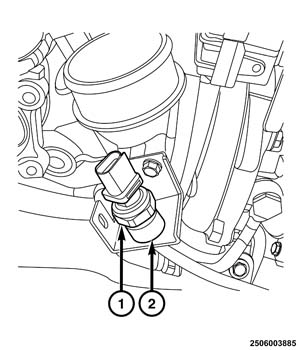

Fig 3: Exhaust Pressure Sensor
Courtesy of CHRYSLER GROUP, LLC
Remove the exhaust pressure sensor (1).

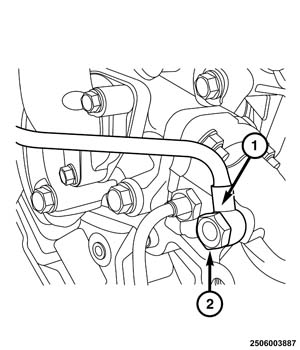

Fig 4: Exhaust Pressure Sensor Tube & Banjo Bolt
Courtesy of CHRYSLER GROUP, LLC
If required, remove the banjo bolt (2) securing the exhaust pressure sensor tube (1) to the exhaust manifold.

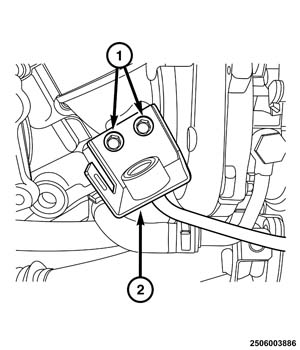

Fig 5: Exhaust Pressure Sensor Tube & Bolts
Courtesy of CHRYSLER GROUP, LLC
If required, remove the bolts and the exhaust pressure sensor tube.
