Cooler And Hoses, Charge Air: Removal: Hoses

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Charge Air Cooler (CAC) Hose Clamp

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Loosen the clamp and disconnect the left Charge Air Cooler (CAC) hose (1).

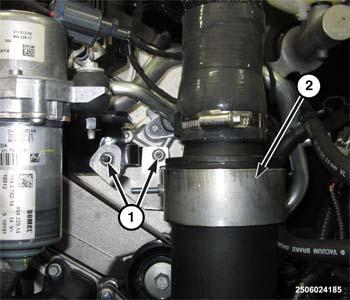

Fig 2: Identifying CAC Resonator And Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the nuts (1) securing the CAC resonator (2).

Fig 3: Charge Air Cooler (CAC) Hose & Locking Retainer At Turbocharger
Courtesy of CHRYSLER GROUP, LLC
Disconnect the CAC hose (1) from the turbocharger elbow (2) and remove the hose.

Fig 4: Right Charge Air Cooler (CAC) Hose Clamp
Courtesy of CHRYSLER GROUP, LLC
Loosen the clamp and disconnect the right CAC hose (1).

Fig 5: CAC Hose & EGR Air Flow Control Valve
Courtesy of CHRYSLER GROUP, LLC
Disconnect the CAC hose (1) from the EGR air flow control valve (2) and remove the hose.
