DUCT, Instrument Panel Demister: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

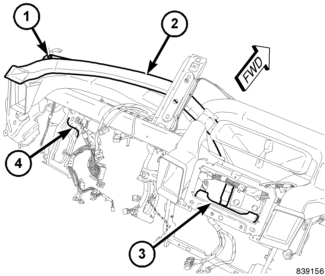

Fig 1: Center Distribution & Driver Side Demister Duct
GC0089535Courtesy of CHRYSLER LLC
  1. Position the driver side demister duct (2) to the instrument panel support (4) and connect it to the distribution duct (3).
  2. Install the retainer (1) that secures the driver side demister duct to the instrument panel support.

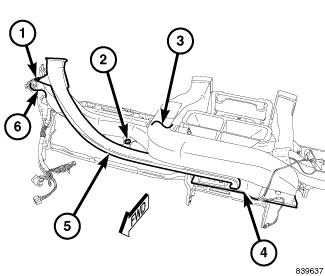

    Fig 2: Passenger Side Demister Duct & Passenger Side Instrument Panel Duct
    GC0089536Courtesy of CHRYSLER LLC
  3. Position the passenger side demister duct (5) to the instrument panel support (6) and connect it to the distribution duct (4).
  4. Install the retainer (2) that secures the passenger side demister duct to the passenger side instrument panel duct (3).
  5. Install the retainer (1) that secures the passenger side demister duct to the instrument panel support.
  6. Install the instrument panel cover. Refer to COVER, Instrument Panel , Installation .
  7. Install the instrument panel. Refer to PANEL, Instrument , Installation .
