DUCT, Defroster: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

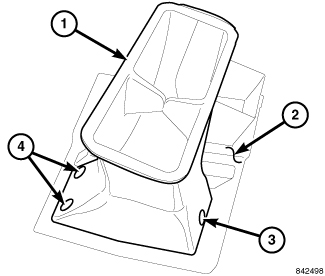

Fig 1: Defroster Duct
GC0089531Courtesy of CHRYSLER LLC
  1. Position the defroster duct (1) onto the center distribution duct (2).
  2. Install the three retainers (3 and 4) that secure the defroster duct to the center distribution duct.
  3. Install the instrument panel ducts onto the instrument panel support. Refer to DUCT, Instrument Panel , Installation .
  4. Install the instrument panel cover Refer to COVER, Instrument Panel , Installation .
  5. Install the instrument panel. Refer to PANEL, Instrument , Installation .
