Knob, Tilt Lever Release: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

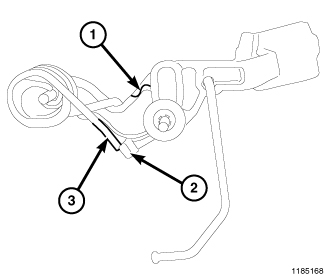

Fig 1: Tilt Release Lever

Courtesy of CHRYSLER GROUP, LLC

NOTE:

A new tilt release lever (1) includes a pre-loaded spring (3) and the linkage. The spring will have tension and should not be released prior to installation.

If the original tilt release lever (1) is to be reinstalled on the column, carefully reload the spring (3) against the tab (2) as shown in illustration.

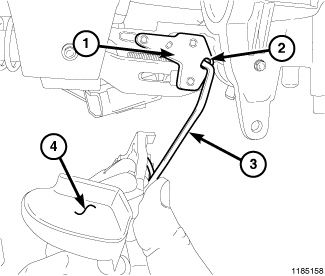

Fig 2: Release Cam Linkage & Release Cam
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The release lever/cam linkage (3) is tabbed to lock into the release cam (1) after installation.
Insert the tilt release lever/cam linkage (3) into the slotted cam hole (2) and rotate the tilt release lever (4) into position.

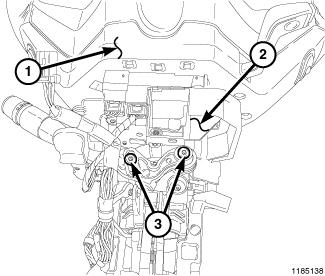

Fig 3: Tilt Release Lever Screws
Courtesy of CHRYSLER GROUP, LLC
Install the tilt release lever screws (3).

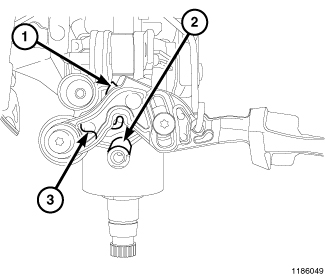

Fig 4: Pre-Loaded Spring Tip
Courtesy of CHRYSLER GROUP, LLC
From the underside the column, push the pre-loaded spring tip (1) up with a small flat blade screwdriver or suitable tool to release the spring from the tab. The spring should snap against the column in the area shown in illustration (3). Verify the tilt release lever for proper operation before proceeding.

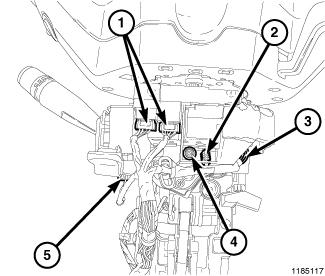

Fig 5: Locating Clockspring Connectors
Courtesy of CHRYSLER GROUP, LLC
Position the multi-function switch mounting bracket and install the lower retaining screw (4).
If equipped, connect the adjustable pedals switch connector (5), harness routing retainer (2), and SAS connector (3).
Connect the clockspring connectors (1).

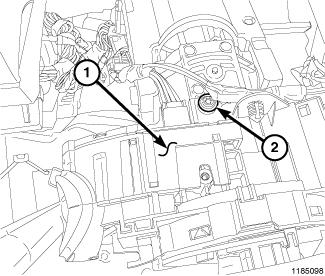

Fig 6: Multi-Function Switch Mounting Bracket Upper Retaining Screw
Courtesy of CHRYSLER GROUP, LLC
Install the multi-function switch mounting bracket upper retaining screw (2).
Install the steering column shrouds. Refer to SHROUD, STEERING COLUMN, INSTALLATION .
Connect the negative battery cable.
