Arm, Upper Control: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Control Arm, Pivot Bolts, & Flag Nuts
GC0083196Courtesy of CHRYSLER GROUP, LLC
  1. Position the control arm (1) into the frame brackets. Install bolt (3) and nut (2), and tighten to specifications. Refer to SPECIFICATIONS . .

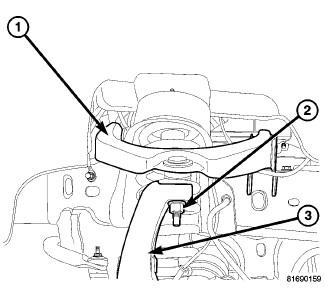

    Fig 2: Steering Knuckle & Upper Ball Joint Nut
    GC0083197Courtesy of CHRYSLER GROUP, LLC
  2. Insert the ball joint in the steering knuckle (3) and tighten the upper ball joint nut (2) to specifications. Refer to SPECIFICATIONS . .
  3. Install the rotor to the hub.
  4. Install the disc brake caliper and adapter to the knuckle. Refer to ADAPTER, DISC BRAKE CALIPER, INSTALLATION .
  5. Install the wheel speed sensor wire to the upper control arm.
  6. Install the wheel and tire assembly. Refer to WHEELS, STANDARD PROCEDURE .
  7. Remove the support and lower vehicle.
  8. Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
