Grille, Defroster: Removal: Removal
- Before proceeding with the following repair procedure, review all warnings and cautions.
- Remove the A-pillar trim panels.

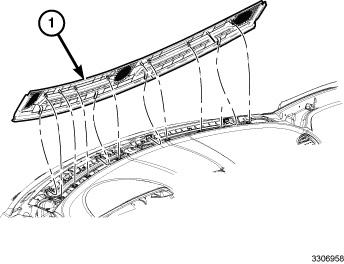

- Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, gently pry between the instrument panel top cover and the rearward edge of the defroster grille (1) to release the snap clip retainers that secure the defroster grille.
- Pull the defroster grille (1) rearward and remove the defroster grille.
