Bumper, Hood: Removal: Removal

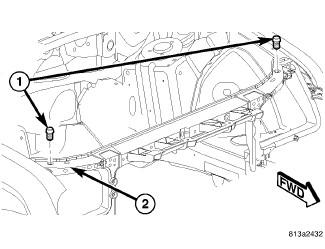

Fig 1: Hood Adjuster Bumpers
GC0080698Courtesy of CHRYSLER LLC
  1. Open and support the hood.
  2. Unscrew the hood adjustment bumper(s) (1) from the mounting hole(s) in the top of the headlamp mounting crossmember (2).
  3. Remove the adjustment bumper(s) from the vehicle.
