P06F3-(Diesel Exhaust Fluid) REDUCTANT Control Module Internal Temperature Sensor Circuit High: Notes

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

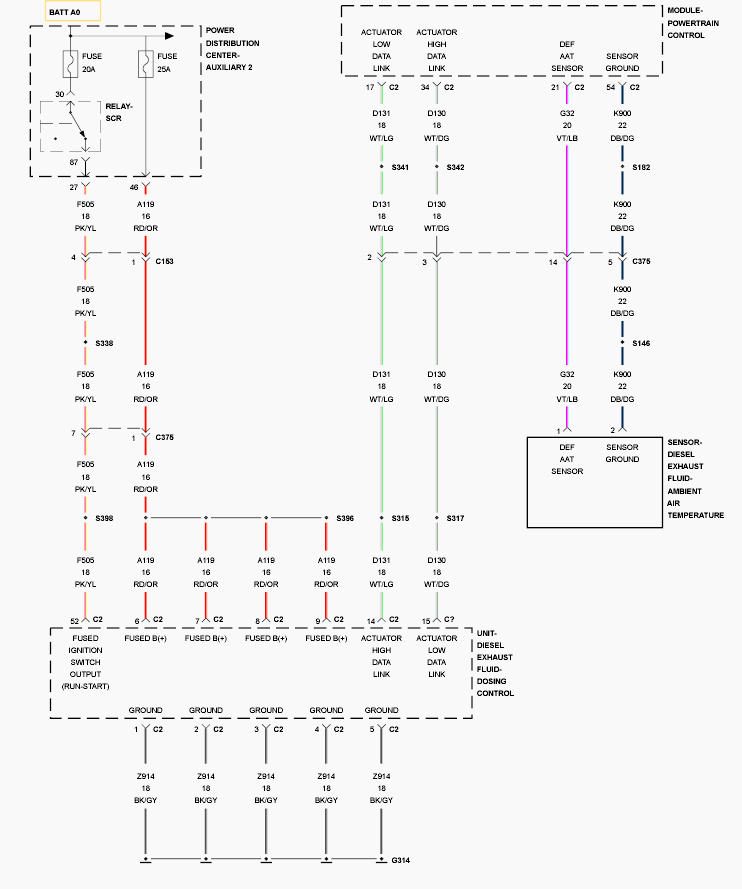

Fig 1: Diesel Exhaust Fluid (DEF) Dosing Control Unit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
