P051B-Crankcase Pressure Sensor Circuit Range/Performance: Notes

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

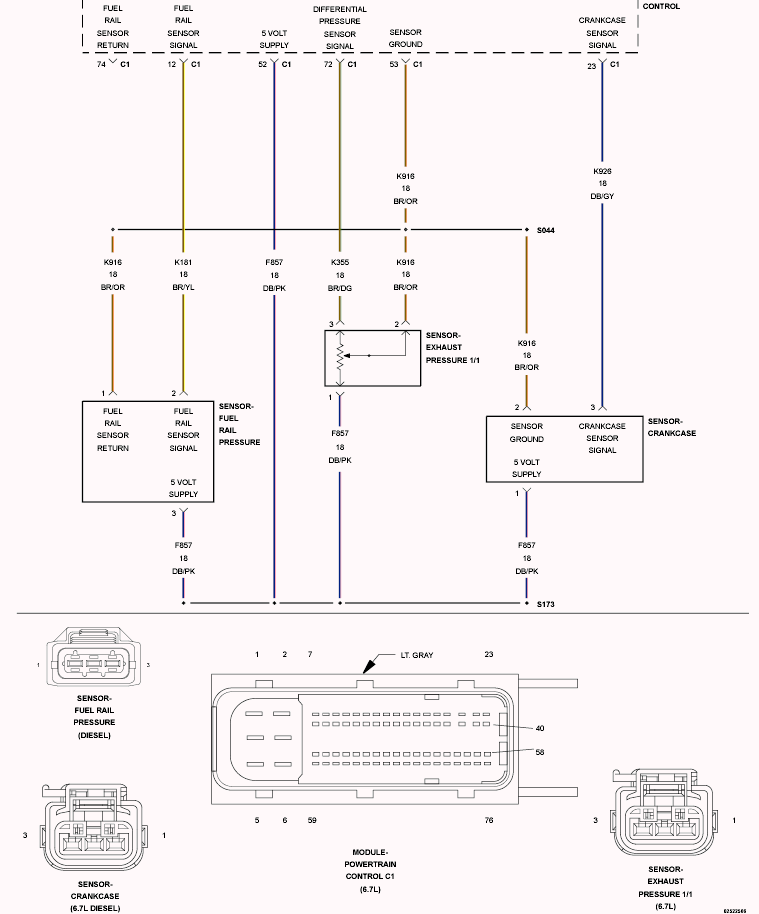

Fig 1: Fuel Rail Pressure, Exhaust Pressure, & Crankcase Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
