Bulb - Park/Turn Signal/Side Marker

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Dual Headlamp Unit & Bulbs
GC0087638Courtesy of CHRYSLER GROUP, LLC
Fig 2: Quad Headlamps, Access Covers & Connectors
GC0087639Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front lamp unit (1) from the vehicle. Refer to LAMP  .
  2. Firmly grasp the park/turn signal/side marker bulb socket (4) on the back of the front lamp unit housing and rotate it counterclockwise about 30 degrees to unlock it.
  3. Pull the socket and bulb straight out from the keyed opening in the housing.

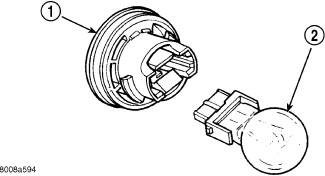

    Fig 3: Light Bulb & Socket
    GC0091938Courtesy of CHRYSLER GROUP, LLC
  4. Pull the base of the bulb (2) straight out of the socket (1).
