Lamp - Cab And Chassis
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

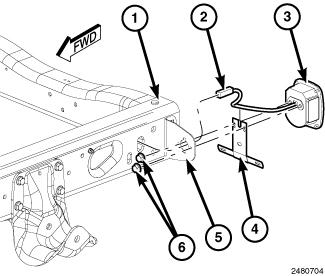

- Feed the pigtail wire and connector (2) of the rear lamp unit (3) through the lamp mounting bracket (5) and position the lamp studs through the mounting holes in the bracket.
- For the left side lamp only, position the license plate mounting bracket (4) onto the rear lamp unit studs.
- Install and tighten the two nuts (6) that secure the rear lamp unit housing to the mounting bracket. Tighten the nuts to 10 N.m (7 ft. lbs.).
- Reconnect the rear lamp unit pigtail wire connector to the chassis wire harness connector for the rear lamp at the back of the frame rear crossmember (1).
- Engage the rear lamp connector retainer into the rear frame crossmember.
- Reconnect the battery negative cable.
