Lamp, License Plate: Installation: Lamp

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

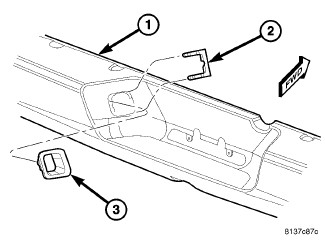

Fig 1: License Plate Lamp Retaining Clip & Housing

Courtesy of CHRYSLER GROUP, LLC

NOTE:

This procedure is for vehicles with pickup beds only. On cab and chassis vehicles the license plate lamp is integral to the left rear lamp unit. The park/brake/turn signal bulb within the left rear lamp unit provides illumination for the license plate lamp function on all cab and chassis vehicles.

Position the license plate lamp unit (3) through the mounting hole from the outer face of the rear bumper or fascia (1).
Reach under and behind the rear bumper or fascia (1) near the center to install the stamped metal retaining clip (2) that secures the license plate lamp housing to the back of the rear bumper or fascia.

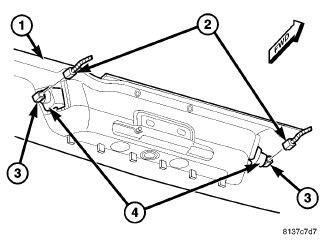

Fig 2: License Plate Lamp Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Reconnect the wire harness connector (2) to the license plate bulb socket (3).
Reconnect the battery negative cable.
