Lamp, Fog: Removal: Lamp: Sport
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The front fog lamp, the fog lamp mounting bracket and the fog lamp adjuster are serviced only as a complete unit. Only the fog lamp bulb is available for separate service replacement. On Sport models the fog lamp mounting bracket is not used. The mounting bracket of the service replacement fog lamp is removed from the fog lamp and discarded, then the fog lamp is mounted directly to the front energy absorber.
- Disconnect and isolate the battery negative cable.
- Raise and support the vehicle.

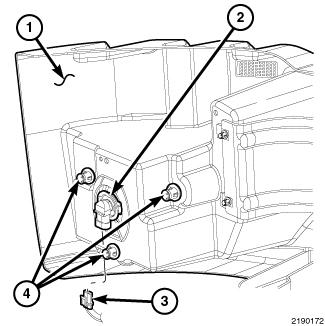

- Remove the front fascia from the face of the front energy absorber (1). Refer to FASCIA, FRONT, REMOVAL .
- Reach under and behind the front energy absorber to access and disconnect the fog lamp jumper wire harness connector (3) from the fog lamp (2) bulb connector receptacle.
- Slide a 15 millimeter socket over each of the retainer grommets (4) one at a time to compress the legs of the grommets far enough to push them out through the face of the front energy absorber.
- Remove the fog lamp and retainers as a unit from the fog lamp receptacle on the face of the front energy absorber.
