NOTE:
The fog lamps are secured within one of two mounting brackets. One bracket is secured to the bumper or fascia with two mounting screws and the other by three mounting screws. Other than the number of mounting screws, the two lamps are identical.
NOTE:
The front fog lamp, the fog lamp mounting bracket and the fog lamp adjuster are serviced only as a complete unit. Only the fog lamp bulb is available for separate service replacement.
- Disconnect and isolate the battery negative cable.
- Raise and support the vehicle.

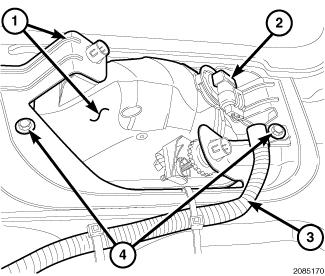

- Reach under and behind the front bumper to access and disconnect the fog lamp jumper wire harness (3) connector from the fog lamp bulb (2) connector receptacle.

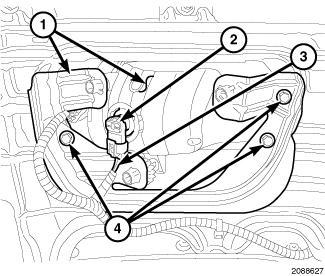

- Remove the two or three screws (4) that secure the fog lamp and mounting bracket (1) to the back of the front bumper.
- Remove the fog lamp and mounting bracket from the back of the front bumper as a unit.
