Lamp, Cab: Installation: Bulb
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

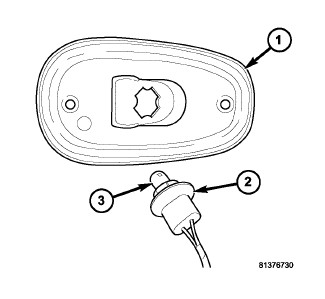

- Align the base of the bulb (3) with the socket (2).
- Push the bulb straight into the socket until the base is firmly seated.
- Reinstall the cab clearance lamp (1) onto the roof panel. Refer to LAMP .
- Reconnect the battery negative cable.
