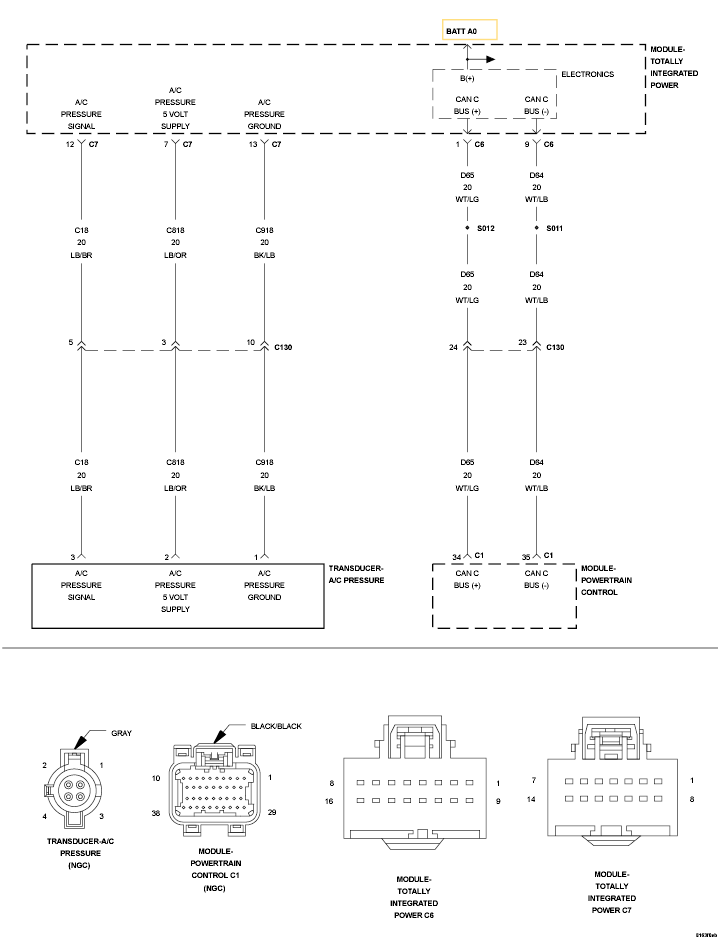

Fig 1: A/C Pressure Transducer Circuit Schematic
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
