Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Ignition on, engine not running.
  NOTE:
  Check for any Bus Communication DTCs. If no Bus or Communication DTCs are set, check for active DTCs stored in the Anti-Lock Brake Module. Any bus or communication DTCs or VSS DTCs in the Anti-Lock Brake Module must be properly diagnosed before continuing.
2. With a scan tool, select View DTCs.
  Is the DTC Active at this time?

  Yes
  - Go To 2.
  No
  - Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Refer to INTERMITTENT CONDITION .
VISUAL INSPECTION
NOTE:
This code can set due to tire circumference differences and from the front or rear wheels being on a slippery surface while the opposite tires are not.
1. This code may also set on a hard acceleration on loose gravel or during other off road driving conditions.
2. Check tire pressure of all the tires.
3. Check tire wear on all the tires.
4. Ask the customer what the road and driving conditions were like when the fault set.
  Were any problems found?

  Yes
  - Repair as necessary. If the code set during a front OR rear wheel spin condition, no repair is necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 3.
(B222) VEHICLE SPEED NO. 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE

Fig 1: Measuring Voltage Of (B222) Vehicle Speed No. 2 Signal Circuit AT Appropriate Terminals Of Special Tool #8815
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the ABS Module harness connector.
3. Disconnect the C1 PCM harness connector.
  CAUTION:
  Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position) to perform diagnosis.
4. Ignition on, engine not running.
5. Measure the voltage of the (B222) Vehicle Speed No. 2 Signal circuit at the appropriate terminals of special tool (special tool #8815A, Kit, NGC, 38 Position).
  Is there any voltage present?

  Yes
  - Repair the short to voltage in the (B222) Vehicle Speed No. 2 Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 4.
(B222) VEHICLE SPEED NO. 2 SIGNAL CIRCUIT OPEN

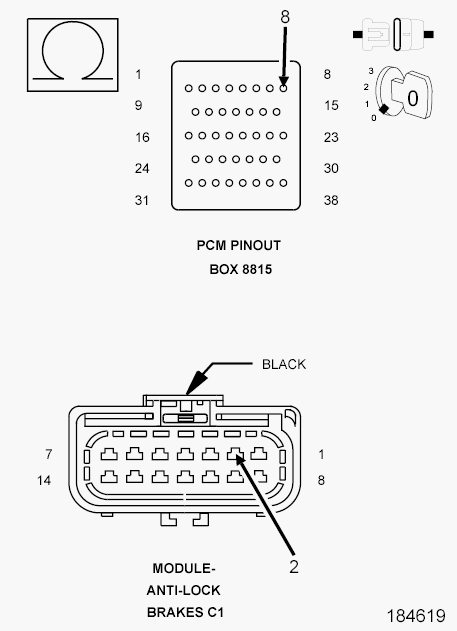

Fig 2: Measuring Resistance Of (B222) Vehicle Speed No. 2 Signal Circuit From ABS Module Harness Connector To Appropriate Terminal Special Tool #8815
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance of the (B222) Vehicle Speed No. 2 Signal circuit from the ABS Module harness connector to the appropriate terminal special tool (special tool #8815A, Kit, NGC, 38 Position).
  Is the resistance below 5.0 ohms?

  Yes
  - Go To 5.
  No
  - Repair the open in the (B222) Vehicle Speed No. 2 Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
(B222) VEHICLE SPEED NO. 2 SIGNAL CIRCUIT SHORTED TO GROUND

Fig 3: Measuring Resistance Between Ground And (B222) Vehicle Speed No. 2 Signal Circuit AT Appropriate Terminals Of Special Tool #8815
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (B222) Vehicle Speed No. 2 Signal circuit at the appropriate terminals of special tool (special tool #8815A, Kit, NGC, 38 Position).
  Is the resistance below 100 ohms?

  Yes
  - Repair the short to ground in the (B222) Vehicle Speed No. 2 Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 6.
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the ABS Module, VSS, and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the ABS Module, VSS, and the Powertrain Control Module connectors.
4. Refer to any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Replace and program the Powertrain Control Module per Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
