Diagnosis And Testing: B0020-13-Left-Side-Seat-Deployment-Squib-Circuit-Open: Notes

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

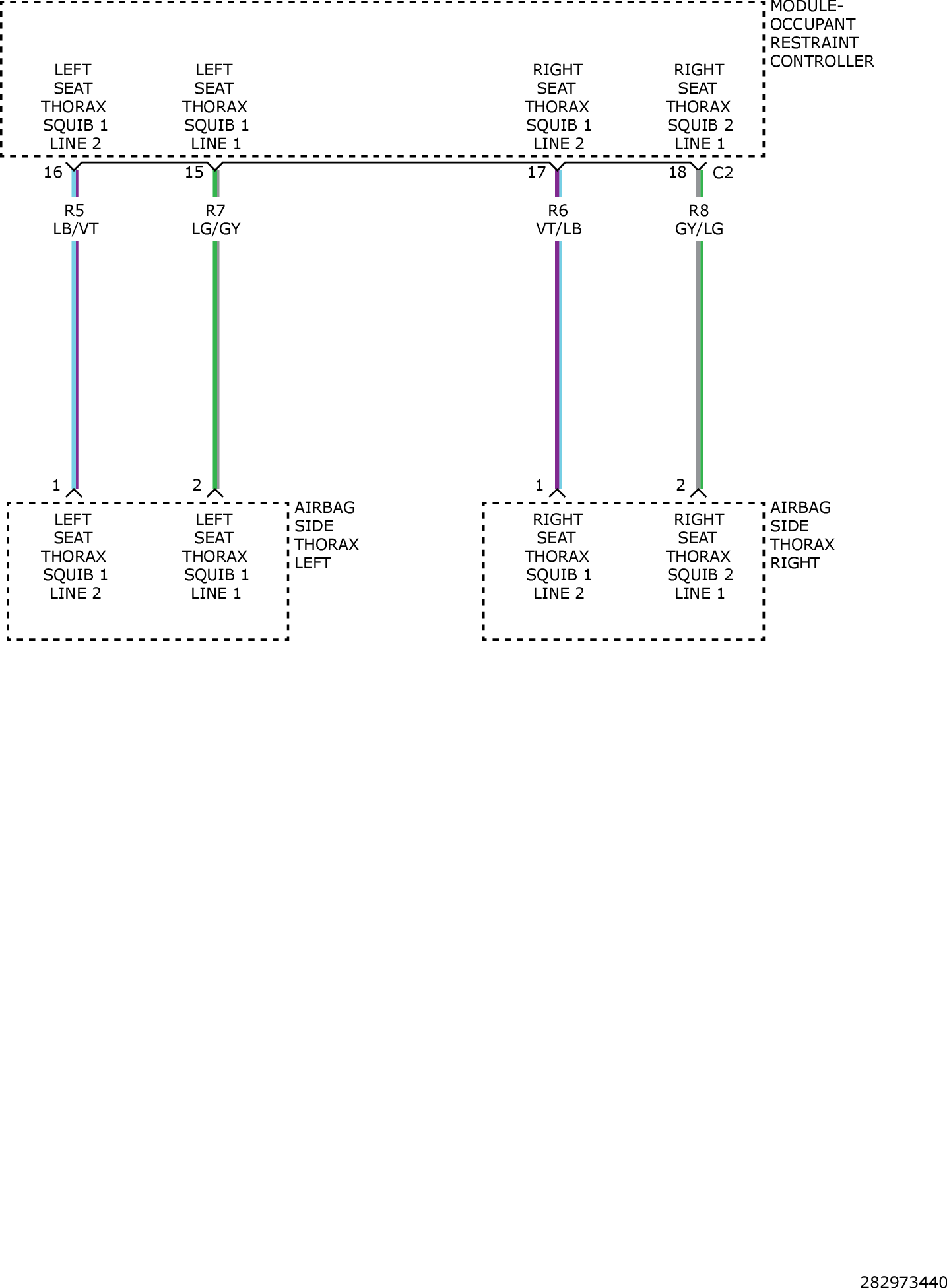

Fig 1: Left/Right Side Squib Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
