Set Up Aim Board And Tripod

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

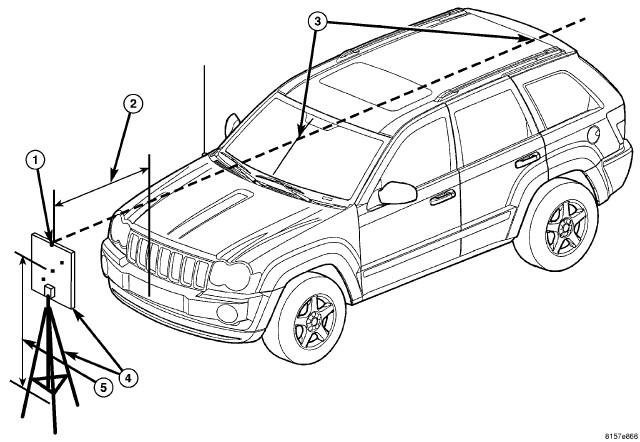

Fig 1: Set Up Aim Board & Tripod
GC0118501Courtesy of CHRYSLER GROUP, LLC
NOTE:

WK shown, D trucks are similar.

  1. Position the vehicle on a level surface in a dimly lit area.
  2. Place the aim board and tripod (4) (Special Tool No. (special tool #9649A, Alignment Device, Smart Beam)) 1, 342mm (52.8 inches) ahead of the foremost center of the hood (2).
  3. Position center LED on the aim board at 694.5mm (27.3 inches) above headlight aim circle.
