Lamp, Fog: Installation: Bulb
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

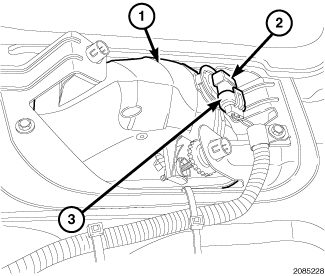

- Align the fog lamp bulb (2) with the keyed opening on the back of the fog lamp housing (1).
- Insert the bulb into the housing until it is firmly seated.
- Rotate the bulb clockwise about 30 degrees to lock it into place. The bulb connector receptacle should be pointed straight downward.
- Reconnect the fog lamp jumper wire harness connector (3) to the fog lamp bulb connector receptacle.
- Reconnect the battery negative cable.
